SCUBA Dive Compressors Available in Gas or Electric
Order any SCUBA Compressor and receive a discount on an Airtank.
We offer Compressors ranging from the small/portable unit starting at $3397 up to the full trailer sized rigs with Cascade Set-up
BAUER JUNIOR II
When Quality Counts, Get a Bauer
None better at any price
Due to its toughness and reliability the JUNIOR with more than 30,000 sold
units has become a global classic. When you need the utmost in quality,
BAUER is recognized as being THE BEST.
This compact BAUER diving unit has been manufactured using top quality components, upholding BAUER's core characteristics of reliability and safety.
The even more compact design and a variety of smart improvements make the JUNIOR II an even better value.
The new JUNIOR II is a product based on more than 60
years of experience and strict BAUER Quality Management according to DIN EN ISO
9001.
| Model | Drive | FAD | RPM | Filling rate |
Drive | Filter System |
Dimensions approx. cm |
Weight net |
Price - Call for Tank Combo Discount | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| max. 330 bar (1) | l/min * | min-1 | min ** | kW | HP | TRIPLEX | L | W | H | approx. | USD (US$) | |

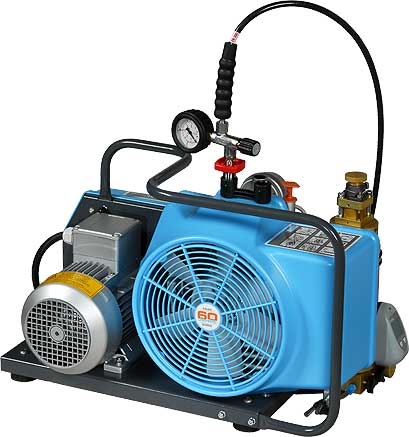

| JUNIOR II – W | 220 VAC single-phase | 100 | 2300 | 2.0 | 2.2 | 3.0 | P21 | 66 | 39 | 42 | 46Kg/101Lb | $4195 |

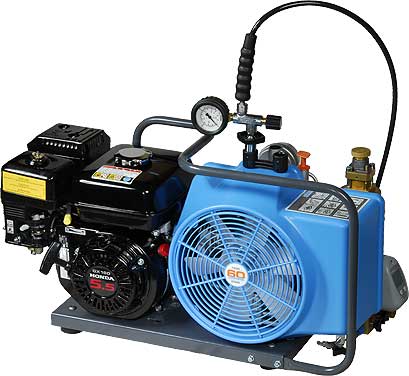

| JUNIOR II – B | 4-stroke Gasoline | 100 | 2300 | 2.0 | 4.0 | 5.5 | P21 | 78 | 34 | 42 | 44Kg/97 Lb | $4496 |
| JUNIOR II – E | 220 VAC Three-phase | 100 | 2300 | 2.0 | 2.2 | 3.0 | P21 | 66 | 36 | 42 | 46Kg/101Lb | $4195 |
The Bauer patented TRIPLEX® filter cartridge is a safe source of pure breathing air according to DIN EN 12021 (formerly DIN EN 3188).
TRIPLEX® filter cartridge: P21 filter with modifications (condensate outlet, modified filter bottom, shorter housing and standard safety valve).
Condensate drain: manual drain operated by two screw knobs on the filter housing and one on the separator after the second stage. These drains have been placed at a height that leaves enough space for a condensate container underneath.
All Compressor Versions: L-shaped frame with special base plate for the compressor block and motor allowing fast and simple belt tensioning, V-belt drive (SPZ belt), Plastic fan shroud with integrated holders for the telescopic intake tube, Steel carrying handle fixed to the base plate allows easy transport by two people (rails on both sides of the unit), Rubber anti-vibration feet, Integrated fill adapter brackets for two hoses with DIN and ISO connections.
1) available with switch over device 330 / 225
bar or 225 bar/330 bar alternatively
2) standard unit with integrated telescopic intake tube and Subaru four-stroke
engine
* cylinder filling from 0 to 200 bar
** filling rate for 1 litre cylinder capacity from 0 to 200 bar

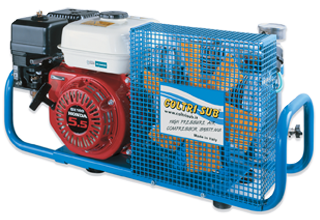

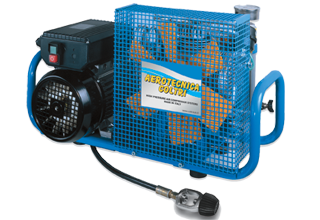

Our Economical 3E & 3.5G Dive Compressors only $3379For the budget minded
The compact dimensions and light weight of this compressor make it very easy to transport and operate. It is an extremely reliable unit and is ideal for filling cylinders. Fills an SCBA, SCUBA Tank or Great White tank in about a half an hour |
Features
|
Options
|
| Portable Open Model | MCH6 / 3E | MCH6 / 3.5G |
| Filling Time* | Approx. 23 Minutes | Approx. 19 Minutes |
| Cubic Feet/Minute | 2.8 FAD 3.4 SCFM | 3.5 FAD 4.2 SCFM |
| Liters/Minute | 80 | 100 |
| Engine Options | Single Phase Electric | Honda Gas (Model# 8013) |
| 115 V / E1 / 60 Hz | 28 Amp (Model# 8015) | N/A |
| 230V / E1 / 50 or 60 Hz | 14 Amp (Model# 8014.1) | N/A |
| Engine Power | 3 hp (2.2 kW) | 6.5 hp (4.85 kW) |
| Max Operating Pressure | 4500 PSI (310 bar) | 4500 PSI (310 bar) |
| RPM | 2240 | 2800 |
| Number of Stages | 4 | 4 |
| Number of fill hoses | 1 | 1 |
| Condensate Drain | Manual | Manual |
| Sound Level @ 3 Meters | 82dB | 87dB |
| Dimensions (HxWxD) | 15.5" x 26.5" x 15" (39 x 67 x 38 cm) | 15" x 31" x 14" (38 x 79 x 36 cm) |
| Weight | 90 lbs (41 kg) | 84 lbs (38 kg) |
| Lubrication | Splash Lubrication, Capacity 11 oz. | Splash Lubrication, Capacity 11 oz. |
| Air Quality | DIN 3188 CGA/ Grade E | DIN 3188 CGA/ Grade E |
| Price (Discounted with Airtank Purchase) | $3379 (Call for tank combo discount) | $3379 (Call for tank combo discount) |
